Sony XAV-AX3700

Apple CarPlay

Wired Apple CarPlay: Use all your essential iPhone functions on the road, with Apple CarPlay and your iPhone 7 or newer (running iOS 10.0+ or higher). Connect your compatible Apple iPhone via USB (not wireless) and you’ll see a familiar interface displayed clearly on the Sony receiver’s touchscreen. Simply tap the icons to take calls, check voicemails and text messages, or bring up maps. And of course, listen to your favorite songs using iTunes, Apple Music, or select music apps. Apple CarPlay even lets you talk to Siri to control everything using voice commands. You can dictate text messages, control music playback, or get directions, without ever taking your eyes off the road.

• Maps: Through Apple CarPlay, the power and simplicity of Apple Maps comes to your dashboard; complete with turn-by-turn direction, traffic conditions, and estimated travel time. You can enter a new destination or choose a favorite or recent destination using the head unit’s touchscreen or by simply asking Siri. CarPlay can also predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars. If you have iOS 12.0 or newer on your iPhone with the latest version of Google Maps or Waze, you can choose to navigate via Google Maps or Waze instead of CarPlay. Google Maps and Waze do not support Siri voice control, but will have their own proprietary voice control function which has to be accessed through a touchscreen icon on the receiver.
• Phone: With Apple CarPlay, you can use the XAV-AX3700’s interactive touchscreen or ask Siri to make calls, return calls, and check voicemail. To dial a phone number, simply tap the “Phone” icon and Siri will ask you who you want to call. Using the touchscreen you can manually enter a phone number from the on-screen keypad, scroll through contacts, or select from recent and miss calls. In addition, you get access to your voicemails via touchscreen and Siri. When a call comes in, simply tap the “Phone” icon to answer. You’ll carry on your side of the conversation through the included external microphone, while the other party is heard through your vehicle’s speakers. You can emphasize or weaken the volume level of the microphone. You can also select which car speaker outputs the caller audio; you can select All, Front-Left, Front-Right, or Front-Left/Right.
• Text Messages: Apple CarPlay also lets you enjoy a better and safer way of text messaging with friends and family when you’re on the road, through the Sony receiver and Siri. Through your voice commands, Siri can send, read, and reply to your text messages so that you never have to glance at your phone while behind the wheel. When a new message comes in a banner will come across the screen and Siri will read back the message for you. Text messages cannot be read or typed from the head unit’s touchscreen to prevent driver distraction.
• Music Library: CarPlay lets you access your music in your iPhone’s music library, plus Apple Music from the Sony XAV-AX3700. You can browse your music by Playlist, Artist, Song, etc.. just like you would on your iPhone from the XAV-AX3700’s touchscreen. You can also use Siri to find and play back your music. The XAV-AX3700’s touchscreen will display song/artist information, as well as album art in the background. Tap the Now Playing icon on the Sony receiver’s touchscreen and see song, artist, album information with Album Art displaying in the background. From the Now Playing screen you also get basic playback function, like Play/Pause, Previous Next/Track, Fast Forward/Rewind, and Repeat/Shuffle.
• Audio Apps & Podcasts: CarPlay also supports additional audio apps that you’ve downloaded to your iPhone for enjoying music, podcasts, sports, news, and audiobooks – including Pandora, Tidal, Spotify, iHeart Radio, TuneIn Radio, Slacker Radio, Vox, Stitcher, MLB.com At Bat, CBS Radio News, NPR One, OverCast, Audiobooks.com & Audible (subscriptions and fees may app). Control them from the head unit’s touchscreen or Siri just like you would from your iPhone. Your iPhone’s touchscreen remains unlocked during CarPlay connection, so you are able to access additional music apps and listen to them through the Sony receiver; however these apps offer no control or display information from the head unit’s touchscreen.
• Apple HomeKit Compatible: CarPlay now supports control of Apple HomeKit enabled devices (sold separately) through Siri. Using CarPlay in your vehicle, you can ask Siri to close or open your garage door, turn on or off home lighting, increase or decrease the temperature of your thermostat, as well as control select functions of other Apple HomeKit enabled devices and appliances.

Cellular & Data Plan Requirements: Access to Apple CarPlay apps will depend on the availability of a cellular and/or WiFi network for purposes of allowing your compatible iPhone to connect to the Internet. Your compatible Apple iPhone will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

USB-C Port Charging: The Sony XAV-AX3700 is equipped with a rear-panel USB-C port, instead of the standard USB-A port. The receiver’s USB-C port provides up to 3A of current to power and charge your USB-connected Apple iPhone or Android smartphone when your vehicle’s ignition switch is set to the ‘ACC’ or ‘On’ position. If your iPhone or Android device has no initial battery charge, then the unit will not recognize it.

Built-in Bluetooth

Bluetooth 5.0: The Sony XAV-AX3700 is equipped with built-in Bluetooth 5,0, allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles –

• Hands-Free Communication: HFP 1.7.1 (Hands Free Profile), PBAP 1.2 (Phone Book Access Profile).
• Audio Streaming: A2DP 1.3.1 (Advanced Audio Distribution Profile), AVRCP 1.6.1 (Audio/Video Remote Control Profile).

Secure Simple Pairing: With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the Sony XAV-AX3700 without having to enter pin codes or go through complicated settings. This unit can be paired with multiple devices (up to 10), but it can only be connected to a single device at a time for wireless music playback and hands-free calling.

Hands-Free Communication: The Sony XAV-AX3700 supports Bluetooth hands-free communication for your Bluetooth enabled cell-phone. Bluetooth hands-free communication helps to minimize distraction while driving by allowing you to control your mobile phone from the head unit, so you don’t have to touch your mobile phone. The controls of the XAV-AX3700 can be used to dial a number, answer an in-coming call, or end a call. The unit also features an external microphone (featuring adjustable gain), so you can carry on your side of the conversation while listening to the caller through your vehicles speakers. And thanks to the latest Hands-Free Profile (HFP 1.7) with wideband speech capability, the XAV-AX3700 provides more natural sound quality and details during wireless calls.

• Answering Calls: Incoming calls can be answered manually or automatically through the Sony head unit, while the ring tone is output from your car speakers and the caller’s name or phone number is displayed on the head unit’s touchscreen. Incoming calls can also be rejected if desired.
• Dialing a Number: Using the XAV-AX3700, you can dial a phone number in a variety of ways.
  • Entering Phone #: Allows you to manually dial a phone number using the unit’s touchscreen keypad.
  • Presets (Favorites): You can store up to 6 contacts in the preset dial for quick dialing from the unit’s touchscreen.
  • Phone Book: You can transfer up to 1,000 contacts from your phone’s phonebook and store them in the head unit for easy access using the unit’s touchscreen monitor.
  • Call History: The unit will store the last 20 calls, allowing you to select a previous phone number quickly from the list.
  • Redial: Use this feature to easily redial the last number you called.
• Phone Call Adjustments: During a conversation, you can adjust the ringtone volume, adjust the caller’s voice volume level, adjust the microphone gain level, as well as switch between the Hands-Free Mode and the Hands-Held Mode (talking directly on your cell phone).

Wireless Audio Streaming: The Sony XAV-AX3700 also supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth enabled audio player or smartphone. You can stream stored music and music apps from your Bluetooth-enabled device to the XAV-AX3700.

• Supported Codecs: In addition to support for the standard SBC Bluetooth audio codec, the XAV-AX3700 offers support of AAC and LDAC. By supporting AAC, the Sony digital multimedia receiver offers better audio performance of the music streamed from your Apple iPod, iPhone, or iPad. LDAC streams audio from your compatible Android OS device at 24-bit/96kHz sampling with bitrates up to 3x higher (990 kbps) than conventional Bluetooth.
• Advanced Music Browsing: In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the XAV-AX3700 lets you browse your stored music by Playlist, Artist, Album, Song, etc. (AVRCP 1.4 phones only; which includes Android 4.0+ and iPhone 5.0+).
• Song/Artist Info: The head unit will also display your music’s song/artist information; such as Artist name, Song title, and Album title (no album art).

USB & Radio Functions

USB-C Port (for MSC Playback): The Sony XAV-AX3700 features a rear-panel USB-C port that is located on the rear of the touchscreen monitor and comes with a 59″ USB-C extension cable. In addition to supporting Apple CarPlay, the USB-C port supports the connection of a USB MSC (mass storage class) device with a USB-C connector. You’ll be able to play back a variety of audio files (including Hi-Res) on your compatible USB MSC device through the Sony digital multimedia receiver, as well as control playback and view song/artist information with album art. USB devices that can be charged via USB will be charged when plugged into the receiver’s USB-C port (3A), and the vehicle’s ignition switch is set to ACC or On.

Digital Clarity Tuner w/ RDS: The Sony XAV-AX3700 is equipped with a Digital Clarity Tuner for clear AM/FM stereo sound with digital processing technology. The radio features 5 memory bands to store and receive AM/FM stations. You can store up to 6 presets each in FM1, FM2, FM3, AM1 and AM2 (total: 18 FM/12 AM). Preset tuning can be done manually or automatically.

• BTM (Best Tuning Memory): BTM (Best Tuning Memory) selects stations with the best signals within the selected band and stores them in order of their frequency. You can select from FM1, FM2, FM3, AM1, and AM2.
• RDS: FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal. Radio Data System (RDS) displays radio broadcast information such as artist, title, and album when listening to compatible FM stations.

SiriusXM-Ready: The Sony XAV-AX3700 is SiriusXM-Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300 sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 175+ SiriusXM channels via subscription; check out the most popular SiriusXM. Additional features of the SiriusXM Connect tuner include:

• Channel list displays a list of all available channels
• Category Search searches for channels in a certain category
• Displayed Information such as Channel Name, Artist Name, & Song Title can be viewed on the head unit’s LCD
• Up to 18 SiriusXM Satellite Radio station presets
• Channels containing unsuitable content for children can be blocked

Rearview Camera Input: The Sony XAV-AX3700 is equipped with a composite video rearview camera input to connect a backup camera (sold separately – see Accessories Tab). By connecting a backup camera, you can use the in-dash receiver’s touchscreen monitor to see what’s behind you when backing up.

• Parking Guide Lines: When a backup camera is connected and you are viewing a rearview image, parking guide lines appear on-screen making parking easy and safer. There are three color-coded horizontal guidelines. The parking guide lines can be customized to fit your type of vehicle better.
• Auto-Switching: When your vehicle’s shift lever is in the reverse position, the screen automatically switches to the rear view camera; the purple/white wire of the included harness must be connected to the vehicle’s reverse lamp circuit for automatic video switching. Automatic video switching takes approximately 1.0 second. You can also manually select the rearview camera input from the head units touchscreen.

iDatalink Maestro Compatible: iDatalink Maestro compatibility connects the XAV-AX3700 to the onboard computer of select vehicles, turning it into a customized display for factory-equipped functions and features. With an iDatalink Maestro RR or RR2 (sold separately) you can interface with your vehicle’s infotainment and information (for performance, safety and comfort) directly on the Sony receiver’s 6.95″ touchscreen.

• Web Programmable: The iDatalink Maestro RR is web programmable, which means you’ll need to flash the iDatalink Maestro RR interface module with the correct firmware from iDatalink’s website. In addition to flashing the iDatalink Maestro RR module, you’ll also need a vehicle specific harness (sold separately). The Sony receiver’s OEM Setup menu must also be configured with your compatible vehicle’s factory system before initial operation.
• Functions & Settings: After installing the iDataLink Maestro module and downloading the proper firmware, only available functions and settings are displayed on the Sony receiver’s touchscreen monitor. You can use the Climate Control screen to see the status and operate the climate control system in your car. Selectable Gauges display driving information of your vehicle such as running speed (MPH), engine speed (RPM), and more. The Vehicle Information screen indicates information from your vehicle such as the tire pressure, car battery voltage, door ajar, and more. The Park Assist feature adds a visual display of detected objects to the existing parking sensor system in your vehicle (if equipped).

Optional Steering Wheel Control Adapter: This receiver is compatible with aftermarket steering wheel audio control adapters (sold separately) designed to retain your vehicles existing factory steering wheel controls (if equipped) once the factory radio is replaced with an aftermarket head unit.

Audio & DSP Section

Dynamic Reality Amp 2: The Dynamic Reality Amp 2 gives you 20W (RMS) x 4ch / 55W (Peak) x 4ch of power, so you can play music as loudly or softly as you like with clarity and detail. The amp has 47% less internal resistance than conventional units, for increased output and clear, natural sound at any volume.

• Continuous Power Output: 20 watts RMS x 4 channels (at 4 ohms, 20Hz-20kHz, 1% THD-N)
• Peak Power Output: 55 watts x 4-channels (220 total watts)

5ch/2V Preouts+ Subwoofer Control: The XAV-AX3700 contains five 2-volt RCA preouts; a front channel pair, rear channel pair, and mono-subwoofer channel. The front and rear channel preouts can be faded, while the subwoofer preout is non-fading. You can adjust the subwoofer preout’s volume level (-10 to +10) independently from the head unit’s volume control. You can also select the phase of the subwoofer output from Normal or Reverse.

Low-Pass & High-Pass Filter: The Sony digital multimedia receiver is equipped with low-pass and high-pass crossover filters. The unit’s subwoofer preout features a low pass filter with a selectable cut-off frequency of 50Hz, 63Hz, 80Hz, 100Hz, or 125Hz. The front & rear speaker high-level and low-level outputs offer a selectable high-pass crossover frequency of 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, or Off. The slope of the low & high pass crossovers can be adjusted to -12dB, -24dB, -36dB, or -48dB.

14-Band EQ: You can select from a variety of preset EQ curves. Select from R&B, Rock, Pop, Dance, Hip-Hop, Electronica, Jazz, Soul, Country, Custom 1/2, & Off. The Custom EQ preset mode allows you to tailor the sound to your personal preference with its 14-band graphic equalizer. Cut and boost 14 different frequencies (50, 80, 125, 200, 315, 500, 800, 1.25k, 2k, 3.15k, 5k, 8k, 12.5k, 17.3k Hz) from -12 to +12 for unlimited sound sculpting options.

Touchscreen & Remote Control

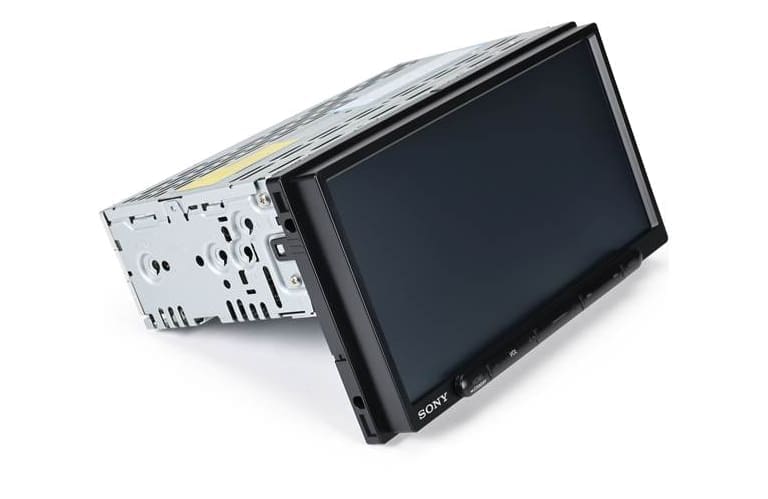

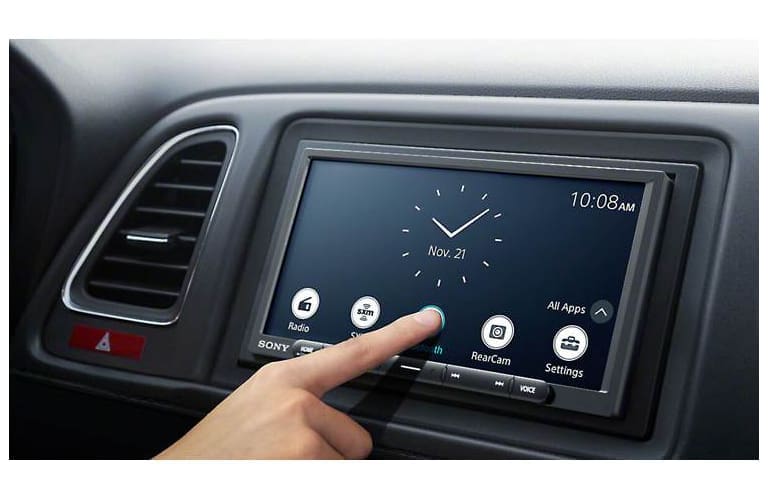

6.95″ Anti-Glare Touchscreen: The Sony XAV-AX3700 digital multimedia receiver is equipped with a 6.95″ touchscreen with full-color display and responsive touch-sensitive control. The 6.95″ touchscreen monitor has a resolution of 800 RGB x 480 (1,152,000 pixels). The anti-glare 6.95″ touchscreen ensures an intuitive interface and efficient user experience.

• Wallpaper Background: You can customize the touchscreen interface’s wallpaper (background) to suit your car interior or personal taste. You can choose between four presets (Solid Black / Cherry Wood / Saddle Leather / Blue Canvas) or two manual wallpaper color settings.
• Illumination Dimmer: To change the brightness of the display you can set the Sony receiver to one of two dimmer modes; Dimmer Auto (dims the display automatically when you turn your vehicle’s lights on), or Dimmer On (display always dim). You can adjust the dimmer level from -5 to +5.

Front-Panel Buttons: Push-button controls along the bottom edge of the 6.95″ touchscreen display provides instant access to commonly-used features such as volume, source, sound settings and voice control for safe and easy operation on the road

Beep Tone: The in-dash head unit provides an audible beep to confirm button operation (only when using the receiver’s built-in amp). This function can be turned On or Off.

Optional Remote: The XAV-AX3700 digital multimedia receiver supports Sony’s optional IR remote control (RM-X400 – sold separately and not available at Crutchfield).
