Rockford Fosgate RFK1D Amp Wiring Kit

$470.00

1/0-gauge dual amp wiring kit — includes power wiring, three 2-channel patch cables, and speaker wire

About the Rockford Fosgate RFK1D Amp Wiring Kit

All-in-one wiring kit for your dual-amp system

Rockford Fosgate’s RFK1D dual amp wiring kit supplies everything you’ll need to send power and signal to two amps and your speakers. It’s designed for amplifier systems with fuse ratings totaling up to 300 amperes.
  • For Class AB amp systems — 1,000 to 1,700 total watts RMS
  • For Class D amp systems — 1,700 to 2,700 total watts RMS

Pure copper is the best

Rockford Fosgate wire is made of oxygen-free copper, with no impurities that could raise its resistance to a signal’s flow or add interference, and meets or exceeds American Wire Gauge (AWG) requirements.

Power and signal distribution

Along with the hefty 1/0-gauge power and ground cables you’ll find two distribution blocks for the main power and ground, smaller 4-gauge power and ground cables for the amps, 30 feet of speaker wire, three 2-channel RCA patch cables, a fuse holder with a 300-amp fuse, and more.

Product highlights:

  • dual amplifier wiring kit
  • oxygen-free copper wires meet or exceed the American Wire Gauge specifications and requirements
  • 17 feet of 1/0-gauge power cable
  • 3 feet of 1/0-gauge ground cable
  • 4 feet of 4-gauge power cable
  • 4 feet of 4-gauge ground cable
  • two 1/0-gauge to 4-gauge distribution blocks
  • 20 feet of 18-gauge turn-on lead wire
  • three 16-foot twisted pair RCA patch cables
  • 30 feet of 16-gauge speaker wire
  • ANL/MAXI fuse holder and 300-amp fuse
  • assortment of wire termination hardware and cable ties
  • warranty: 1 year

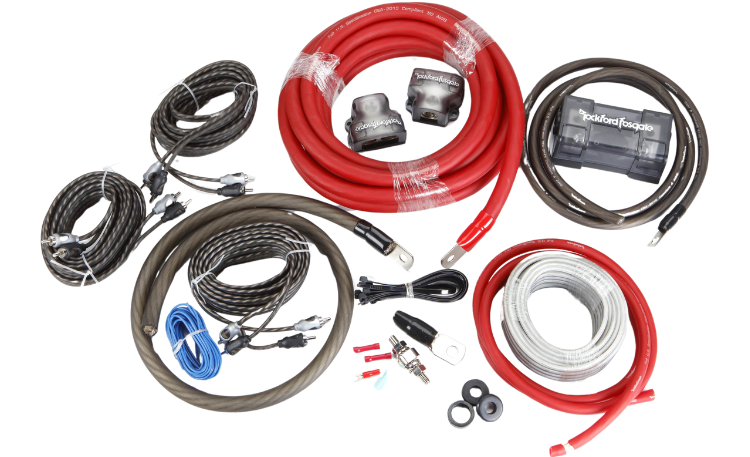

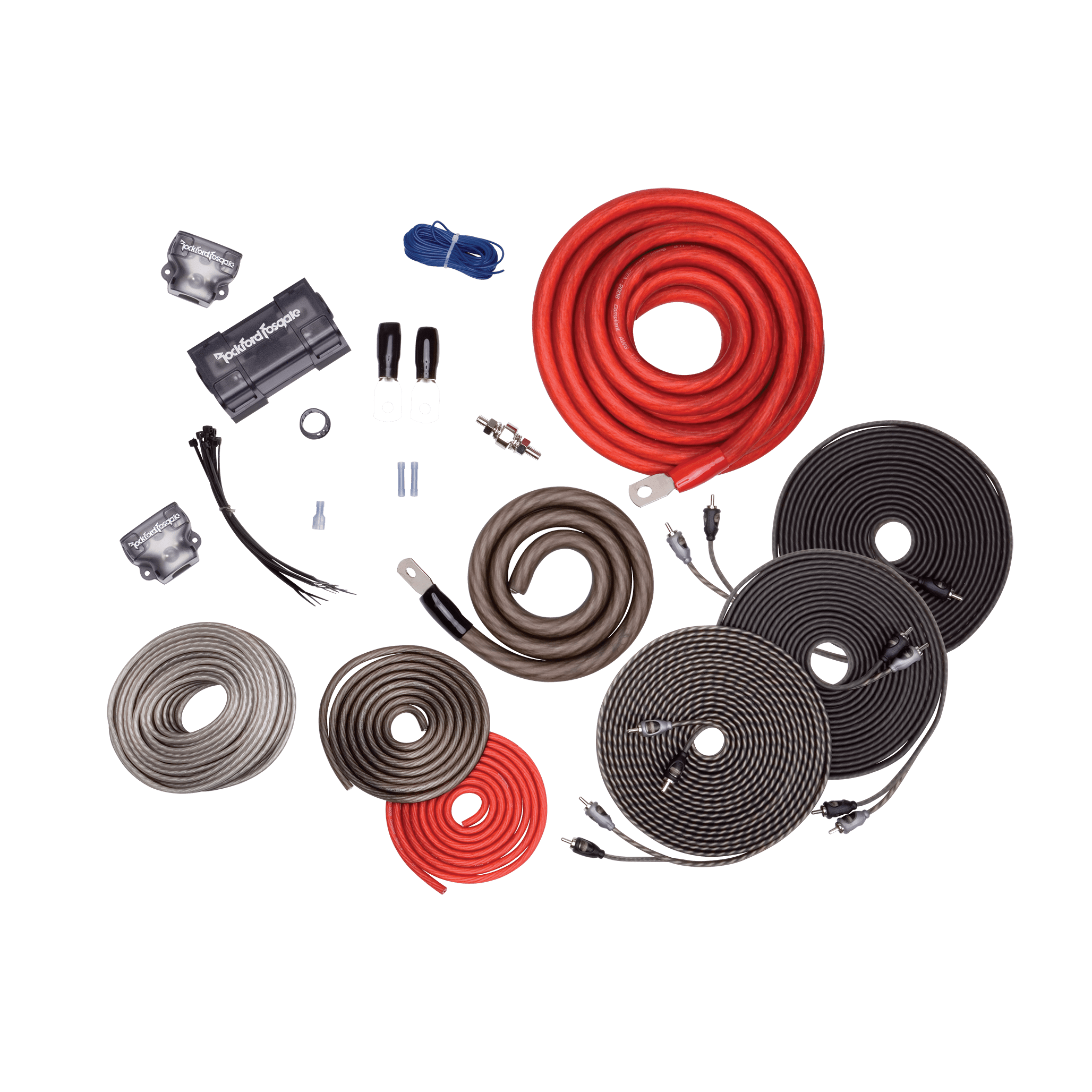

What’s in the box:

  • 17′ Power cable (1/0-gauge) in a red translucent jacket (has an in-line MAXI fuse holder and a ring terminal on the battery end)
  • 300A MAXI fuse (installed in fuse holder)
  • 3′ Ground cable (1/0-gauge) in a gray translucent jacket (with a ring terminal on one end)
  • 4′ Power cable (4-gauge) in a red translucent jacket
  • 4′ Ground cable (4-gauge) in a gray translucent jacket
  • 2 Distribution blocks (One 1/0-gauge in/two 4-gauge out)
  • Three 16′ twisted pair RCA patch cords
  • 30′ Length of 16-AWG speaker wire
  • 20′ Length of turn-on lead in a blue jacket
  • Ten 4″ wire ties
  • Plastic bag containing the following:
  • Crimp-on ring terminal for 1/0-gauge wire
  • Large black rubber boot
  • Plastic 1/0 gauge-sized grommet
  • 2 Red plastic butt connectors
  • Crimp-on female 0.25″ quick slide connector
  • Crimp-on spade connector
  • Red rubber boot
  • GM battery post bolt with 2 nuts/2 lock-washers/3 star-washers installed
  • 2 Rubber washers
  • Decal with model and serial numbers

More details on the Rockford Fosgate RFK1D Amp Wiring Kit

Product Research

Features

General Overview: This is a dual amplifier wiring kit that includes 1/0-gauge and 4-gauge power and ground cables, power distribution blocks, turn-on leads, three pairs of stereo RCA cables, a 30′ length of 16-AWG speaker wire and other accessories required to install two amplifiers.

High Strand Power/Ground Cable: The power and ground cable are 100% Pure Crystal-Oxygen Free Copper (PC-OFC) and meet or exceed AWG (American Wire Gauge) requirements. For example, the included 4-gauge power and ground wires each have 1,862 copper strands, compared to the 735 copper strands which meets the standard. The 1/0-gauge cables have 4,704 strands each.

In-line Fuse Holder: The included in-line fuse holder attached to the power cable comes with a 300-amp MAXI-type fuse.

Power Distribution: The kit includes two unfused power distribution blocks. Each block has a single input and two outputs.

Patch Cables: There are three 16′ RCA patch cables included, each with twisted pair design for noise rejection.

Speaker Wire: The amplifier kit comes supplied with 30′ of high strand 16-AWG speaker wire for increased sound transfer.

Accessories: The kit includes the following accessories needed for amplifier installation:

  • Ring terminal for 1/0-gauge wire and rubber boot
  • Butt connectors for splicing together wires
  • Grommet for routing 1/0-gauge power wire through the firewall
  • Wire ties for securing wires to the vehicle
  • GM battery bolt extender for connecting the power terminal to a side-post battery terminal.
