HMX 6.5 LD-TW / TC

$350.00

HMX 6.5 LD-TW hi-performance marine coaxial speakers with RGB LEDs lighting option, also available in the black option HMX 6.5 LD-TC, feature a tone-on-tone front mesh matching the grille colour. The tweeter acoustic lens optimizes off-axis dispersion and maximized SPL.

The RGB LED lighting circuit is integrated below the tweeter, protected by a Polypropylene transparent cover acting as light diffusion. The UV-resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.

Features

Integrated RGB LED lighting to enhance your experience in combination with the HM RGB 1 BK accessory.
Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
Sound-transparent tone-on-tone stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
Sealed built-in crossover with resettable solid-state tweeter protection circuit .
Gold-plated corrosion resistant terminals.

Technical Specs

Component	HI-END LED COAX
Size mm (in.)	165 (6.5)
Power Handling – Continuous W	75
Power Handling – Peak W	150
Impedance Ohm	4
Depth mm (in.)	95,6 (3.76)
Tweeter diaphragm mm (in.)	36 (1.4)
Woofer Voice Coil Ø mm (in.)	25 (1)
Tweeter Voice Coil Ø mm (in.)	20 (0.8)

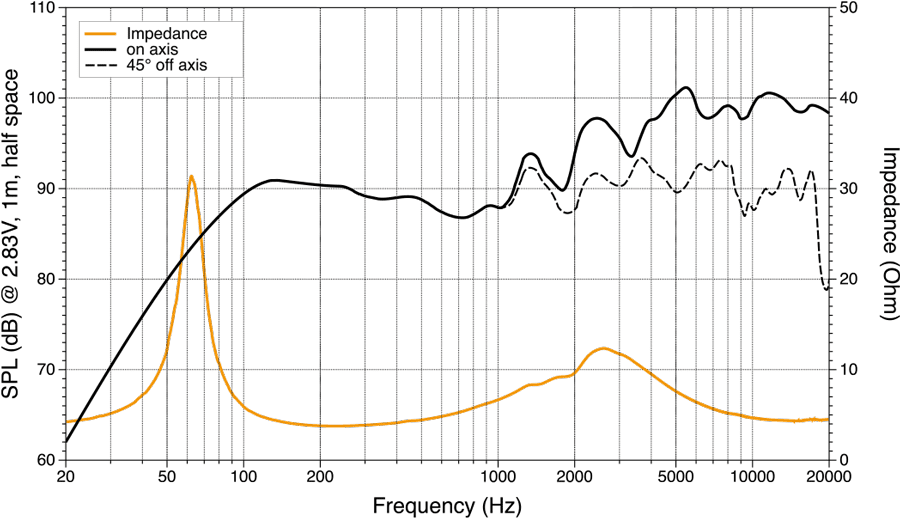

Frequency Response Hz	50 ÷ 25k
Woofer Magnet size D x d x h mm (in.)	78,5 x 32 x 17 (3.09 x 1.26 x 0.67)
Tweeter Magnet size D x h mm (in.)	19,7 x 3 (0.78 x 0.12)
Weight of one speaker kg (lb.)	1 (2.2)
Woofer Magnet	High density flux ferrite
Tweeter Magnet	Neodymium
Cone	Polypropylene with UV inhibitors
Dome	PEI
Xmech mm (in.)	±6,65 (0.26)
