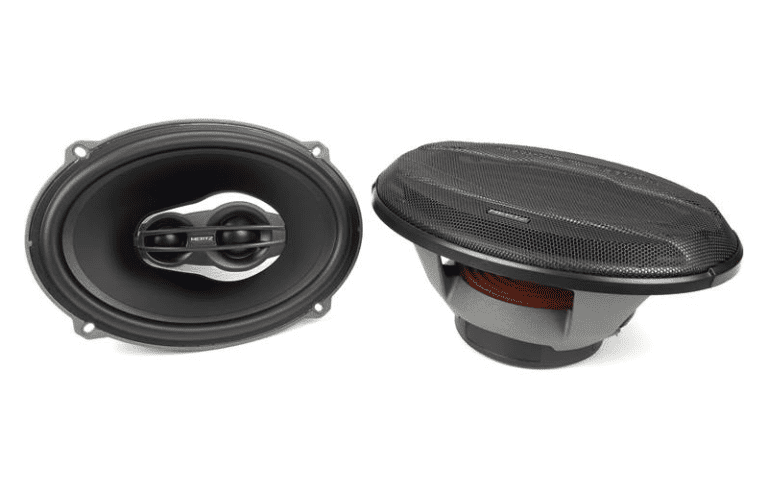

About the Hertz MPX 690.3 PRO
Improve your sound by a thousand
Some things are worth indulging in, and the enjoyment of your daily drive is one of them. Install the Mille Series MPX 690.3 PRO 6″x9″ car speakers in your vehicle and you’ll experience the very best of what Hertz has to offer: a passionate approach to premium sound.Innovative design
Hertz thoughtfully integrates a Tetolon fiber dome tweeter and supertweeter, extending this speaker’s frequency range and providing a detailed soundstage. For more impactful lows, each speaker employs a “Boundary Free” rubber surround with its enhanced pressed pulp and cotton fiber woofer to move more air with accuracy. Superior damping is also key to the sound of these speakers — minimized resonance reduces distortion for a truer-to-life sound.The Hertz philosophy
Hertz believes that a good speaker should reveal the emotional power of the music you love. That’s a high bar, but with their commitment to using premium components and boundary-pushing design, they’re more than up to challenge. Comprised of music lovers, Hertz is committed to optimizing your car’s sound system for total audio enjoyment.Product highlights:
- 3-way car speakers (pair)
- 6″x9″ pressed pulp/ cotton fiber woofer with Boundary Free rubber surround
- 1-1/2″ Tetolon dome tweeter and 1″ Tetolon supertweeter
- handles up to 130 watts RMS (260 watts peak power)
- frequency range: 30-24,000 Hz
- sensitivity: 94 dB
- top-mount depth: 3-9/16″
- grilles included
- warranty: 2 years
What’s in the box:
- Hertz MPX 690.3 PRO owner’s manual
- Two 3-way Speakers
- 2 Grilles
- Grille putty
- Eight 3/4″ Screws
- 8 Speed clips
- Owner’s manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 21 Others)
- Template on box
More details on the Hertz MPX 690.3 PRO
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6X9 | |
| Driver Design | 3-way | |
| Woofer Design | Cone | |
| Woofer Material | Pressed Pulp w/ Cotton Fiber | |
| Woofer Surround | Rubber | |
| Midrange Design | — | |
| Midrange Material | — | |
| Tweeter Design | 1.5″ Dome | |
| Tweeter Material | Tetolon | |
| Super Tweeter Design | 1″ Dome | |
| Super Tweeter Material | Tetolon | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | Black steel mesh,Black plastic frame,Gray plastic | |
| Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 94 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 30 – 24k Hz | |
| Maximum RMS Wattage | 130 | |
| Peak Power Handling (Watts) | 260 | |
| Top-mount Depth (Inches) | 3 9/16 | |
| Bottom-mount Depth (Inches) | 3 11/16 | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.835 | |
| Frame Width | 6.535 | |
| Frame Length | 9.505 | |
Product Research
Features
Aluminum Basket: The aluminum basket is rigid and non-magnetic.
Boundary Free Surround: This technology provides more cone surface area than other speakers of the same size, enabling it to move more air. The surrounds are made of butyl rubber, ensuring thermal and mechanical linearity.
Grille: The three piece grille can be used several different ways. All three pieces (black plastic frame, gray plastic inner grill, and black steel mesh) can be mounted together. The frame and mesh can be mounted without the inner grille, the frame and inner grille can be mounted without the mesh, and the inner grille can be mounted alone.
