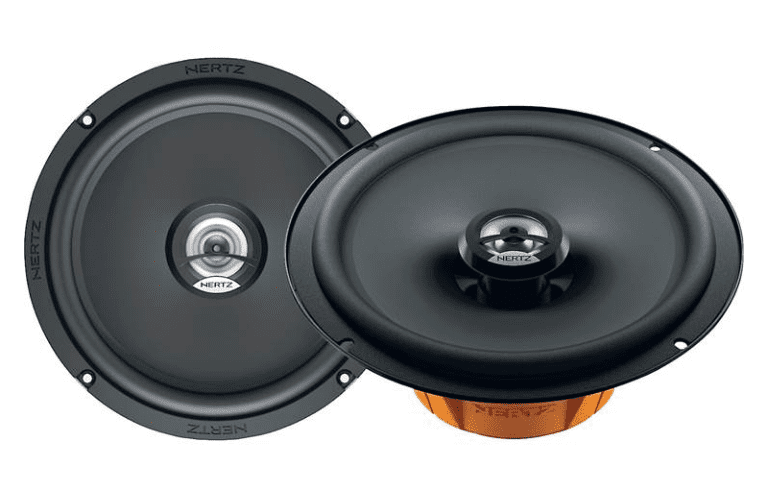

About the Hertz DCX 165.3
Freshen up your sound
Looking to add a little oomph to your system? Swap out your old speakers for Hertz’s Dieci Series 6-1/2″ car speakers and take your sound to a new level. A built-in crossover channels midrange and low frequencies to a treated paper woofer with a special polyurethane surround and directs high frequencies to a PEI dome tweeter. Improved linearity and reliable performance give you impressive dynamic range for new enjoyment of old favorites.The Hertz philosophy
Hertz believes that a good speaker should bring out the emotional power of the music you love. That’s a high bar, but with their commitment to using premium components and boundary-pushing design, they’re more than up to challenge. Comprised of music lovers, Hertz is committed to optimizing your car’s sound system for total audio enjoyment. Speaker grilles sold separately.Product highlights:
- 2-way car speakers (pair)
- 6-1/2″ treated paper woofer with polyurethane surround
- 5/8″ PEI dome tweeter
- handles up to 60 watts RMS (120 watts peak power)
- frequency range: 60-21,000 Hz
- sensitivity: 93 dB
- top-mount depth: 2-1/2″
- grilles not included
- warranty: 2 years
What’s in the box:
- Hertz DCX 165.3 owner’s manual
- wo 2-way Speakers
- Eight 3/4″ Screws
- 8 Speed clips
- Owner’s manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 20 Others)
- Template on box
More details on the Hertz DCX 165.3
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Treated Paper (Water-Repellent) | |
| Woofer Surround | Polyurethane | |
| Midrange Design | — | |
| Midrange Material | — | |
| Tweeter Design | 15mm Dome | |
| Tweeter Material | PEI | |
| Super Tweeter Design | — | |
| Super Tweeter Material | — | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | No | |
| Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 93 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 60 – 21k Hz | |
| Maximum RMS Wattage | 60 | |
| Peak Power Handling (Watts) | 120 | |
| Top-mount Depth (Inches) | 2 9/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 9/16 | |
| Mounting Height (Inches) | 0.242 | |
| Frame Width | 6.48 | |
| Frame Length | 6.48 | |
Product Research
Features
PEI Dome Tweeter: Each speaker has a PEI (Poly-Ether-Imide) dome tweeter. PEI is a polymer film that produces a wide soundstage to improve imaging.
Woofer: The woofer cones are made of water-repellent treated paper.
Size Classification Note: Some manufacturers, including Hertz, call this size speaker a 6-1/2″. Because it requires a larger cutout than a standard 6-1/2″ speaker, Crutchfield has traditionally referred to this size speaker as a 6-3/4″. Please enter your vehicle information to confirm fit.
