About the Hertz CX 690
3-way excellence

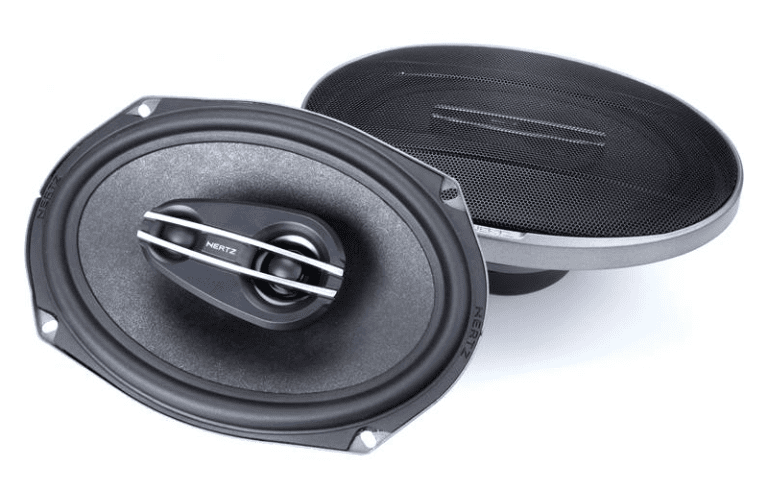

These Hertz Cento Series CX 690 6″x9″ 3-way car speakers employ a PEI dome tweeter and supertweeter designed to deliver superior dispersion. The semi-pressed paper and mica powder woofer cone upholds your music’s lower frequencies with accuracy and impact. Superior damping is also key to the sound of these speakers — minimized resonance reduces distortion for Hertz’s famous truer-to-life sound. These are a great choice for the new enthusiast who’s ready to get serious about sound in their vehicle.The Hertz philosophy
Hertz believes that a good speaker should enhance the emotional power of the music you love. That’s a high bar, but with their commitment to using premium components and boundary-pushing design, they’re more than up to challenge. A community of music lovers, Hertz is committed to optimizing your car’s sound system for total audio enjoyment.Product highlights:
- 3-way car speakers (pair)
- 6″x9″ semi-pressed paper woofer with mica powder coating
- 1-5/8″ PEI (polyetherimide) dome tweeter and 13/16″ PEI supertweeter
- handles up to 100 watts RMS (300 watts peak power)
- frequency range: 40-23,000 Hz
- sensitivity: 93.5 dB
- top-mount depth: 3-1/8″
- impedance: 4 ohms
- grilles included
- warranty: 2 years
What’s in the box:
- Hertz CX 690 owner’s manual
- Two 3-way Speakers
- 2 Grilles
- 2 Grille mounting rings
- Grille putty
- Eight 3/4″ Screws
- 8 Speed clips
- Owner’s manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 28 Others)
- Template on box
More details on the Hertz CX 690
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6X9 | |
| Driver Design | 3-way | |
| Woofer Design | Cone | |
| Woofer Material | Semi-Pressed Paper reinforced with Mica | |
| Woofer Surround | Rubber | |
| Midrange Design | — | |
| Midrange Material | — | |
| Tweeter Design | 40mm Dome | |
| Tweeter Material | PEI | |
| Super Tweeter Design | 20mm Dome | |
| Super Tweeter Material | PEI | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | Black steel mesh, Gray plastic frame | |
| Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 94.5 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 40 – 23k Hz | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 300 | |
| Top-mount Depth (Inches) | 3 1/8 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.633 | |
| Frame Width | 6.425 | |
| Frame Length | 9.363 | |
Product Research
Features
Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and computer software to do large-scale analysis of drivers in motion, helps Hertz optimize the speaker’s motor structure, voice coil alignment, and suspension to yield the best possible performance.
