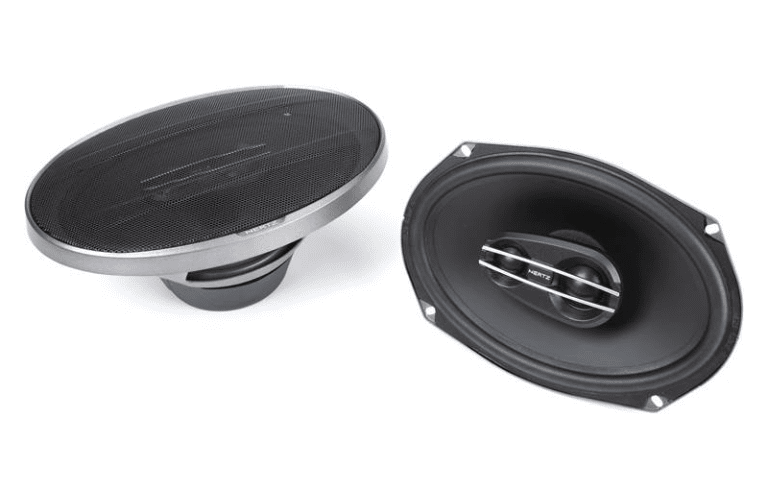

About the Hertz CPX 690 PRO
Get serious about sound
It’s official — you’re into car audio in a major way. It was inevitable from the moment you first upgraded your factory system, but what’s the right next step? Hertz created their Cento Pro Series for the new enthusiast who’s ready to get serious about sound in their vehicle. These CPX 690 PRO 6″x9″ 3-way car speakers employ an innovative venting structure that promotes cooling and prevents distortion. As a result, Hertz gets superior low-end performance from the pressed paper woofer and butyl rubber surround, while the Tetolon fiber dome tweeter and supertweeter effortlessly provide satisfying highs.The Hertz philosophy
Hertz believes that a good speaker should enhance the emotional power of the music you love. That’s a high bar, but with their commitment to using premium components and boundary-pushing design, they’re more than up to challenge. A community of music lovers, Hertz is committed to optimizing your car’s sound system for total audio enjoyment.Product highlights:
- 3-way car speakers (pair)
- 6″x9″ pressed paper woofer with butyl rubber surround
- 1-1/4″ Tetolon dome tweeter and 15/16″ supertweeter
- handles up to 120 watts RMS (360 watts peak power)
- frequency range: 35-24,000 Hz
- sensitivity: 94 dB
- top-mount depth: 3-3/8″
- impedance: 4 ohms
- grilles included
- warranty: 2 years
What’s in the box:
- Hertz CPX 690 PRO owner’s manual
- Two 3-way Speakers
- 2 Grilles
- 2 Grille mounting rings
- Grille putty
- Eight 3/4″ Screws
- 8 Speed clips
- Owner’s manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 25 Others)
- Template on box
More details on the Hertz CPX 690 PRO
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6X9 | |
| Driver Design | 3-way | |
| Woofer Design | Cone | |
| Woofer Material | Pressed Paper (Water-Repellent) | |
| Woofer Surround | Rubber | |
| Midrange Design | — | |
| Midrange Material | — | |
| Tweeter Design | 1.2″ Dome | |
| Tweeter Material | Tetolon | |
| Super Tweeter Design | 0.9″ Dome | |
| Super Tweeter Material | Tetolon | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | Black, Steel mesh, Plastic frame | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 94 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 35 – 24k Hz | |
| Maximum RMS Wattage | 120 | |
| Peak Power Handling (Watts) | 360 | |
| Top-mount Depth (Inches) | 3 3/8 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.725 | |
| Frame Width | 6.434 | |
| Frame Length | 9.358 | |
Product Research
Features
Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and computer software to do large-scale analysis of drivers in motion, helps Hertz optimize the speaker’s motor structure, voice coil alignment, and suspension to yield the best possible performance.
