About the Hertz CK 165
Premium materials and design
The Cento Series sounds like magic — but it’s actually the result of carefully considered design and materials by Hertz’s team of experts. The CK 165 component speaker system employs a separate Tetolon® dome tweeter for detailed sound defined by a natural timbre and smooth transitions. The semi-pressed paper and mica powder woofer cone delivers your music’s lower frequencies with accuracy and impact. Superior damping is also key to the sound of these speakers — minimized resonance reduces distortion for Hertz’s famous truer-to-life sound. The system’s external, compact crossovers feature two tweeter levels help you dial in the best sound in your vehicle.The Hertz philosophy
Hertz believes that a good speaker should enhance the emotional power of the music you love. That’s a high bar, but with their commitment to using premium components and boundary-pushing design, they’re more than up to challenge. A community of music lovers, Hertz is committed to optimizing your car’s sound system for total audio enjoyment.Product highlights:

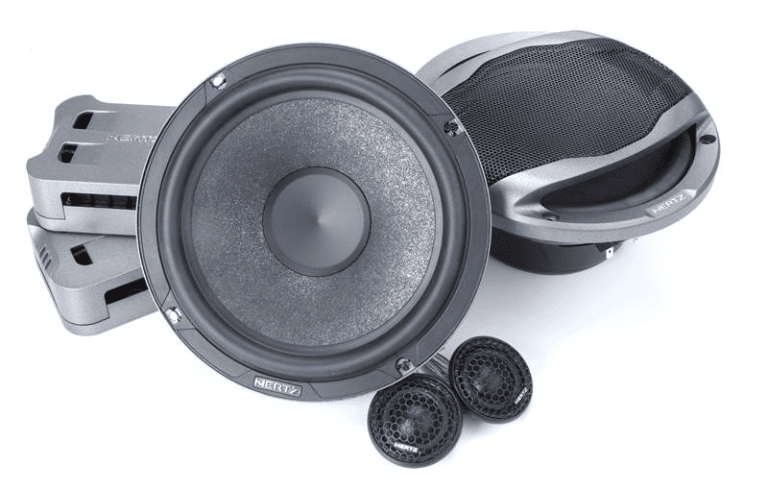

- component speaker system
- package includes two woofers, two tweeters, and two crossovers
- 6-1/2″ semi-pressed paper woofer with mica powder coating
- 1″ Tetolon dome tweeter
- 2-way crossover (2500 Hz at 12 dB per octave)
- handles up to 95 watts RMS (285 watts peak power)
- frequency range: 55-22,500 Hz
- sensitivity: 93 dB
- woofer top-mount depth: 2-1/2″
- woofer grilles included
- warranty: 2 years
What’s in the box:
- Hertz CK 165 owner’s manual
- Two C 165 Woofers
- Two C 26 Dome tweeters (with attached 9″ length of speaker wire)
- Two CCX 2 Crossover networks
- 2 Tweeter flush mount clamps
- 2 Angled surface mount housings
- 2 Woofer grilles
- Grille putty
- Eight 3/4″ Screws (large head)
- Four 3/4″ Screws (small head)
- Four 5/8″ Flat head screws
- 8 Large speed clips
- 4 Small speed clips
- Owner’s manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 28 Others)
- Templates on box
More details on the Hertz CK 165
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Semi-Pressed Paper reinforced with Mica | |
| Woofer Surround | Rubber | |
| Midrange Design | — | |
| Midrange Material | — | |
| Tweeter Design | 1″ Dome | |
| Tweeter Material | Tetolon | |
| Super Tweeter Design | — | |
| Super Tweeter Material | — | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | Black steel mesh, Gray plastic frame | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 93 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 55 – 22.5k Hz | |
| Maximum RMS Wattage | 95 | |
| Peak Power Handling (Watts) | 285 | |
| Top-mount Depth (Inches) | 2 1/2 | |
| Bottom-mount Depth (Inches) | 2 11/16 | |
| Cutout Diameter or Length (inches) | 5 5/8 | |
| Mounting Height (Inches) | 0.311 | |
| Frame Width | 6.503 | |
| Frame Length | 6.503 | |
Product Research
Features
Size Classification Note: Some manufacturers, including Hertz, call this size woofer a 6½”. Because it requires a larger cutout than a standard 6½” speaker, Crutchfield has traditionally referred to this size speaker as a 6¾”. Please enter your vehicle information to confirm fit.
Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and computer software to do large-scale analysis of drivers in motion, helps Hertz optimize the speaker’s motor structure, voice coil alignment, and suspension to yield the best possible performance.
Tweeter Mounting: Brackets are included for flush mounting and angled surface mounting (60° or 30°) the tweeters.
Note: We’ve found some Hertz speakers with the wrong size tweeter template on the box. Before cutting, make sure the template has the correct diameter.
Tweeter Mounting Dimensions:
| Flush Mount | 60° Angled Surface Mount | 30° Angled Surface Mount | |
|---|---|---|---|
| Mounting Height | 0.436″ | 1.375″ | 1.735″ |
| Depth | 0.46″ | N/A | N/A |
| Frame Diameter | 1.728″ | N/A | N/A |
| Cutout Diameter | 1.514″ | N/A | N/A |
| Frame Width | N/A | 1.745″ | 1.745″ |
| Frame Depth | N/A | 1.735″ | 1.375″ |
Crossovers: Each crossover has a tweeter output level switch; choose between 0dB (flat) and +3dB. The crossover point is 2.5 kHz and the slope is 12 dB/octave (low pass and high pass). The inputs and outputs are screw terminals that will accept bare wire or spade connectors up to 0.315″ wide. The woofer has quick slide terminals, so crimp-on terminals can be added (item number 120FQS10PK, sold separately) to provide the needed terminals.
Crossover Dimensions:
- Width: 4″
- Height: 1⅜”
- Depth: 3″
