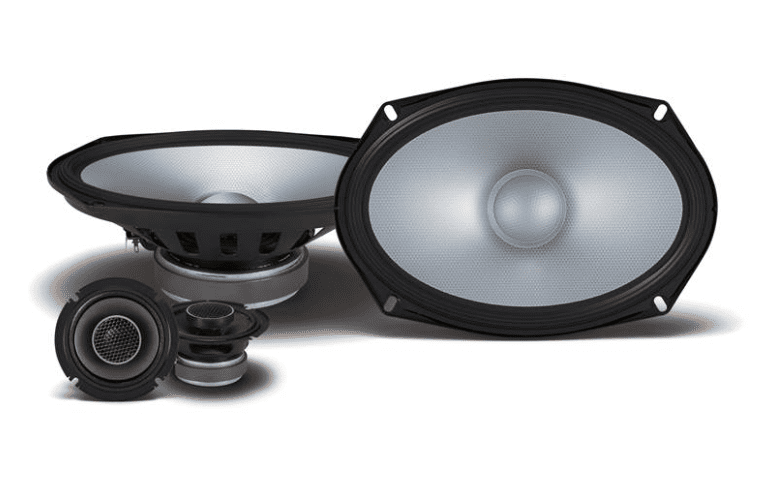

About the Alpine S2-S69C
It’s time for high-res
We’re big fans of Alpine’s push to give more drivers access to high-res audio in the car. Using technology developed for their flagship F#1 Status Series, Alpine’s Next Generation S-Series car speakers provide access to all the wondrous detail of your favorite high-resolution audio files at an appealing price. We recommend aftermarket power to drive these speakers, but even with factory power, their ultra-wide frequency response ensures a detailed, authentic sound.Innovative materials
Alpine packs supreme capability into these speakers by using highly effective materials and proprietary design elements. The lightweight woofer cone, crafted from polypropylene, glass fiber, and mica materials, serves up the essential high output/low distortion sound required for high-res performance. The High Amplitude Multi-Roll (HAMR) surround brings out the best in bass by allowing maximum cone movement. A unique 3″ separate midrange driver with an integrated 3/4″ silk dome tweeter serves up impressive mid- and high-frequency detail that provides a rich sonic experience.Product highlights:
- 2-way component speaker system
- 6″x9″ polypropylene/glass-fiber/mica woofer cone with High-Amplitude Multi-Roll surround
- 3″ midrange with integrated 3/4″ silk dome tweeter
- in-line crossovers for easier installation
- handles up to 85 watts RMS (260 watts peak power)
- frequency range: 55-40,000 Hz
- top-mount depth: 3″
- warranty: 1 year
What’s in the box:
- Alpine S2-S69C owner’s manual
- 2 Woofers
- 2 Bottom mount brackets
- 2 Midrange-Tweeters
- Two 6′ Midrange-Tweeter wires with in-line crossovers (each has quick slides on both ends)
- Two 2″x3.5″ Adhesive-backed foam pads
- Two 9-7/8″x1/4″ Adhesive-backed foam strips
- Eight 1-1/8″ Screws
- Eight 1/2″ Screws
- Eight M4x60mm Machine screws with split lock washers attached
- Eight M4 Nuts
- 16 Flat washers
- 8 Speed clips
- 8 Spacers
- Warranty information
- On-line product registration information
- Important Notice sheet
- Declaration of conformity
- Template and specs on box
More details on the Alpine S2-S69C
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6X9, 3 | |
| Driver Design | 3-way | |
| Woofer Design | Cone | |
| Woofer Material | Polypropylene/Glass Fiber/Mica | |
| Woofer Surround | Rubber | |
| Midrange Design | Cone | |
| Midrange Material | Paper | |
| Tweeter Design | Dome | |
| Tweeter Material | Silk | |
| Super Tweeter Design | — | |
| Super Tweeter Material | — | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | No | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 90 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 55 – 40k Hz | |
| Maximum RMS Wattage | 85 | |
| Peak Power Handling (Watts) | 260 | |
| Top-mount Depth (Inches) | 3 | |
| Bottom-mount Depth (Inches) | 3 3/8 | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.267 | |
| Frame Width | 6.33 | |
| Frame Length | 9.335 | |
The Alpine S2-S69C replaces these items:
- Alpine S-S69C
Product Research
Features
Midrange-Tweeter: The included coaxial speakers are designed to replace the factory tweeters and must be custom mounted. Although the tweeters are protected, there is no midrange grille, so if they don’t fit behind the factory tweeter grille a cover must be fabricated.
Crossovers: The woofers have low-pass crossovers attached to their input terminals. Each included speaker wire has an in-line high-pass crossover; one end plugs into the woofer terminal and the other into the midrange-tweeter terminal. A second high-pass crossover is mounted on each midrange-tweeter to protect the tweeter.
