About the Alpine S2-S69
It’s time for high-res
We’re big fans of Alpine’s push to give more drivers access to high-res audio in the car. Using technology developed for their flagship F#1 Status Series, Alpine’s Next Generation S-Series car speakers provide access to all the wondrous detail of your favorite high-resolution audio files at an appealing price. We recommend aftermarket power to drive these speakers, but even with factory power, their ultra-wide frequency response ensures a detailed, authentic sound.Innovative materials
Alpine packs supreme capability into these speakers by using highly effective materials and proprietary design elements. The lightweight woofer cone, crafted from polypropylene, glass fiber, and mica materials, serves up the essential high output/low distortion sound required for high-res performance. The woofer’s High Amplitude Multi-Roll (HAMR) surround brings out the best in bass by allowing maximum cone movement. A 1″ cloth dome tweeter serves up all the high-frequency detail you’ve been missing with your factory speakers.Product highlights:
- 6″x9″ 2-way speakers
- polypropylene/glass fiber/mica woofer cone with specialized rubber surround
- 1″ cloth dome tweeter
- handles up to 85 watts RMS (260 watts peak power)
- frequency response: 55-40,000 Hz
- sensitivity: 90 dB
- grilles not included
- impedance: 4 ohms
- mounting depth: 2.94″

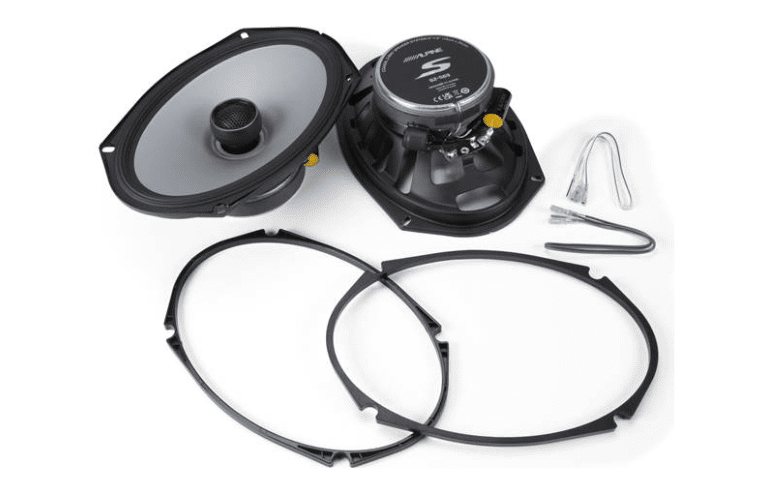

What’s in the box:
- Alpine S2-S69 owner’s manual
- Two 2-way speakers
- 2 Bottom mount brackets
- Two 12″ Lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
- Eight 1-1/8″ Screws
- Eight M4x60mm Machine screws (each screw has a lock washer attached)
- Eight M4 Nuts
- 8 Speed clips
- 16 Flat washers
- 8 Spacers
- Warranty information
- On-line product registration information
- Important Notice sheet
- Declaration of conformity
- Template and specs on box
More details on the Alpine S2-S69
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6X9 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Polypropylene/Glass Fiber/Mica | |
| Woofer Surround | Rubber | |
| Midrange Design | — | |
| Midrange Material | — | |
| Tweeter Design | Dome | |
| Tweeter Material | Cloth | |
| Super Tweeter Design | — | |
| Super Tweeter Material | — | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | No | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 90 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 55 – 40k Hz | |
| Maximum RMS Wattage | 85 | |
| Peak Power Handling (Watts) | 260 | |
| Top-mount Depth (Inches) | 3 | |
| Bottom-mount Depth (Inches) | 3 5/16 | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.285 | |
| Frame Width | 6.358 | |
| Frame Length | 9.33 | |
The Alpine S2-S69 replaces these items:
- Alpine S-S69
