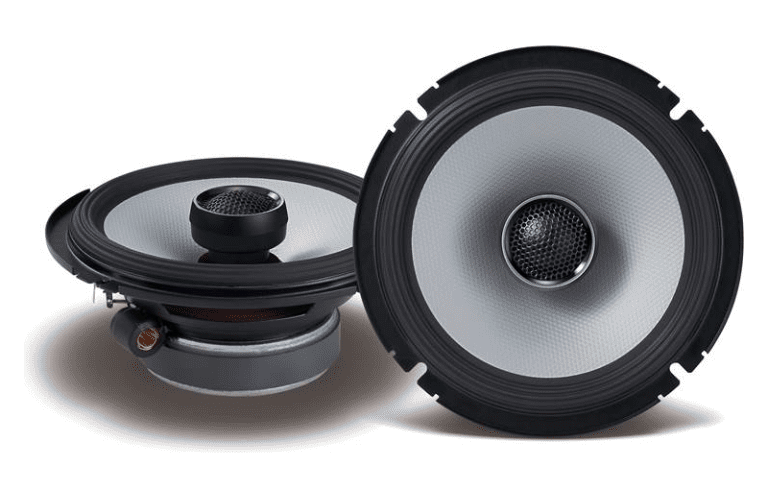

About the Alpine S2-S65
It’s time for high-res
We’re big fans of Alpine’s push to give more drivers access to high-res audio in the car. Using technology developed for their flagship F#1 Status Series, Alpine’s Next Generation S-Series car speakers provide access to all the wonderous detail of your favorite high-resolution audio files at an appealing price. We recommend aftermarket power to drive these speakers, but even with factory power, their ultra-wide frequency response ensures a detailed, authentic sound.Innovative materials
Alpine packs supreme capability into these speakers by using highly effective materials and proprietary design elements. The lightweight woofer cone, crafted from polypropylene, glass fiber, and mica materials, serves up the essential high output/low distortion sound required for high-res performance. The woofer’s High Amplitude Multi-Roll (HAMR) surround brings out the best in bass by allowing maximum cone movement. A 1″ cloth dome tweeter serves up all the high-frequency detail you’ve been missing with your factory speakers.Innovative materials
Alpine packs supreme capability into these speakers by using highly effective materials and proprietary design elements. The lightweight woofer cone, crafted from polypropylene, glass fiber, and mica materials, serves up the essential high output/low distortion sound required for high-res performance. The woofer’s High Amplitude Multi-Roll (HAMR) surround brings out the best in bass by allowing maximum cone movement. A 1″ cloth dome tweeter serves up all the high-frequency detail you’ve been missing with your factory speakers. Grilles are not included; the factory grilles should be suitable for most applications. Optional grilles are available for custom installations.Product highlights:
- 6-1/2″ 2-way speakers
- polypropylene/glass fiber/mica woofer cone with specialized rubber surround
- 1″ cloth dome tweeter
- handles up to 80 watts RMS (240 watts peak power)
- frequency response: 55-40,000 Hz
- sensitivity: 88 dB
- impedance: 4 ohms
- mounting depth: 2.282″
- grilles not included
What’s in the box:
- Alpine S2-S65 owner’s manual
- Two 2-way speakers
- 2 Adapter rings
- Two 12″ Lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
- Eight 1-1/8″ Screws
- Eight M4x6.5mm Machine screws with split lock washers attached
- Eight M4 Nuts
- 6 Flat washers
- 8 Speed clips
- Warranty information
- On-line product registration information
- Important Notice sheet
- Declaration of conformity
- Template and specs on box
More details on the Alpine S2-S65
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Polypropylene/Glass Fiber/Mica | |
| Woofer Surround | Rubber | |
| Midrange Design | — | |
| Midrange Material | — | |
| Tweeter Design | Dome | |
| Tweeter Material | Cloth | |
| Super Tweeter Design | — | |
| Super Tweeter Material | — | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | No | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 88 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 55 – 40k Hz | |
| Maximum RMS Wattage | 80 | |
| Peak Power Handling (Watts) | 240 | |
| Top-mount Depth (Inches) | 2 5/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 1/8 | |
| Mounting Height (Inches) | 0.748 | |
| Frame Width | 6.5 | |
| Frame Length | 6.5 | |
The Alpine S2-S65 replaces these items:
- Alpine S-S65
Product Research
Features
Mounting: Without an adapter, the speakers fit many standard 6¾” applications. Given their required cutout, they will also fit some standard 6½” applications without an adapter, but new screw holes must be drilled. Using the included adapter brackets they can be mounted in a variety of standard 3-hole 6½” applications, Ford 4-hole 6½” applications, and non-standard 6¾” applications, without any modification. Please enter your vehicle information to confirm fit.
