About the Alpine R2-S65
Your entry to high-res audio
Using technology developed for their flagship F#1 Status Series, Alpine built their Next-Generation R-Series Pro Series speakers to be accessible and fun for enthusiasts who are into high-resolution audio playback. Play your high-res music files with confidence, knowing that the ultra-wide frequency response of these speakers will provide the detailed, authentic sound you’re looking for.Minimal distortion
Alpine optimizes their R2-S65 6-1/2″ 2-way speakers for near-perfect sound from premium sources. The combination of a highly rigid aluminum frame and a lightweight glass-fiber reinforced woofer cone keeps the sound clean. The high-amplitude multi-roll surround maximizes impact while maintaining linearity, so you’ll get punch to go with the clarity. And speaking of a little more punch, Alpine ups the mid-bass output with a ferrite magnet and larger motor structure.Loud and fun
All the exquisite detail you need is handled by a 1″ magnesium hard dome tweeter, which contributes to the “loud and fun” sound associated with Alpine’s R-Series. These speakers make a great addition to any high-powered system, thanks to power-handling up to 100 watts RMS. Hook ‘em up and play ‘em loud!Product highlights:
- 6-1/2″ 2-way car speakers (pair)
- glass-fiber woofer cone with High-Amplitude Multi-Roll surround
- 1″ magnesium hard dome tweeter
- handles up to 100 watts RMS (300 watts peak power)
- frequency response: 65-40,000 Hz
- grilles included
- warranty: 1 year

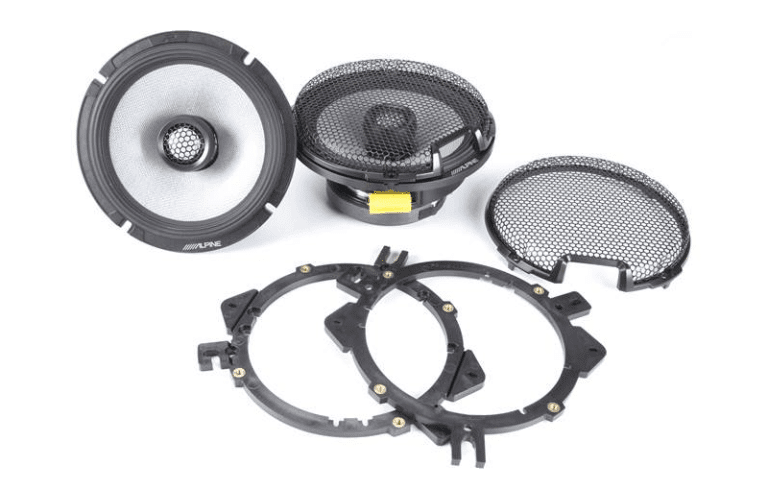

What’s in the box:
- Alpine R2-S65 owner’s manual
- Two 2-way Speakers
- Two multi-purpose adapter rings (includes GM/Chrysler)
- Two grilles
- Eight 1-1/8″ Screws
- Eight M4x12mm Machine screws
- 8 Speed clips
- Warranty information
- Important Notice
- On-line product registration information
- Template and specs on box
More details on the Alpine R2-S65
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Glass-Fiber | |
| Woofer Surround | Rubber | |
| Midrange Design | — | |
| Midrange Material | — | |
| Tweeter Design | Dome | |
| Tweeter Material | Magnesium | |
| Super Tweeter Design | — | |
| Super Tweeter Material | — | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | Black, Steel mesh, Plastic frame | |
| Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 88 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 65 – 40k Hz | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 300 | |
| Top-mount Depth (Inches) | 2 1/2 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 3/8 | |
| Mounting Height (Inches) | 0.667 | |
| Frame Width | 6.497 | |
| Frame Length | 6.497 | |
The Alpine R2-S65 replaces these items:
- Alpine R-S65.2
Product Research
Features
Size Note: Alpine describes this speaker size as 6½, but because it requires a larger cutout than a standard 6½, Crutchfield has traditionally referred to this size as 6¾. Without adapter brackets the speakers fit many standard 6¾ applications. Using the included adapter brackets, they can also be mounted in a variety of 6½ and 6¾ applications. Please enter your vehicle information to confirm fit.
HAMR Surround: The R-Series speakers incorporate Alpine’s patented High-Amplitude Multi-Roll (HAMR) surround, a technology developed for Alpine subwoofers that maintains control and stability at higher volume levels. HAMR surrounds combine increased cone area and long linear cone excursion for deep, powerful bass response.
