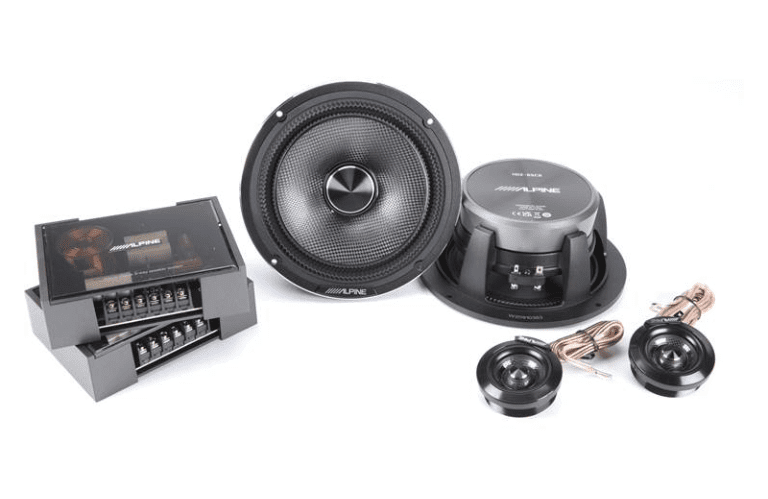

Alpine HDZ-65CS
$550.00
Status Series 6-1/2″ 2-way slim-fit component speaker system
About the Alpine HDZ-65CS
Alpine Status high-resolution audio system
Alpine designed its Status System components for high-resolution audio playback. Their Status Series digital receiver, amp, speakers, and subs were designed to work together and play your 192kHz/24bit digital music streaming files with high-quality, studio-level purity and sonic fidelity.Ready for high-resolution
Alpine crafted their HDZ-65CS 6-1/2″ 2-way component speaker system for listeners in search of excellent audio quality in the car. Using many of the same design and material elements as their flagship F#1 Status speakers, this speaker system optimizes the woofer, tweeter, and crossover for near-perfect sound from premium sources, like high-resolution audio files.Optimized for Alpine
These Status Series speakers make a great addition to any high-powered system, thanks to power-handling up to 100 watts RMS, but you can unlock their full potential by pairing them with Status System components, which Alpine designed with high-resolution audio in mind. Alpine uses a carbon composite cone for consistency across the speaker’s ultra-wide frequency range, plus a special double gathered-edge surround, which helps minimize distortion and promote accuracy.Alpine prioritizes tweeter fit
If you’re upgrading a factory 3-way component system, Alpine optimizes fit to minimize the need for custom work. Their slim-fit 1″ tweeter makes it easier to utilize the factory tweeter locations of more vehicles.Product highlights:
- 2-way car speakers (pair)
- 6-1/2″ carbon composite woofer with double-gathered edge surround
- 1″ slim-fit tweeter
- handles up to 100 watts RMS (300 watts peak power)
- frequency range: 55-40,000 Hz
- sensitivity: 88 dB
- woofer top-mount depth: 2-11/16″
What’s in the box:
- Alpine HDZ-65CS owner’s manual
- Two woofers
- Two woofer grilles
- Two tweeters
- Two flush-mount housings (with tweeters installed)
- Two threaded tweeter mounting rings
- Two crossovers
- Four rectangular adhesive backed pads
- Eight 1-1/8″ Woofer mounting screws
- Four 1-1/8″ Crossover mounting screws
- Eight speed-clips
- Four flat washers
- Four 5″ Zip ties
- Owner’s manual
- Warranty information
- Important Notice
- On-line product registration information
More details on the Alpine HDZ-65CS
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Carbon Composite | |
| Woofer Surround | Rubber | |
| Midrange Design | — | |
| Midrange Material | — | |
| Tweeter Design | Cone | |
| Tweeter Material | Carbon Composite | |
| Super Tweeter Design | — | |
| Super Tweeter Material | — | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | Black, Steel mesh, Plastic frame | |
| Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | N/A | |
| Sensitivity at 2.83 volts | 88 | |
| Frequency Response | 55 – 40k Hz | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 300 | |
| Top-mount Depth (Inches) | 2 11/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 9/16 | |
| Mounting Height (Inches) | 0.35 | |
| Frame Width | 6.687 | |
| Frame Length | 6.687 | |
Product Research
Features
Woofer: Alpine describes the woofer size as 6½, but because they require a larger cutout than a standard 6½ speaker, Crutchfield has traditionally referred to this size as 6¾. Please enter your vehicle information to confirm fit.
Cone Material: The same carbon composite cone material is used for both the woofers and tweeters, aiding the smooth transition between the drivers.
Phase Plug: The woofers and tweeters use an aluminum phase plug in the center of the cone to help produce a smooth, flat off-axis frequency response by preventing the high frequency sound waves from one side of the cone from interfering with sound waves from the other side of the cone.
Tweeters: The tweeters are designed to be flush mounted, with the mounting surface sandwiched between the tweeter flange and the threaded mounting ring.
Tweeter Dimensions:
| Flush Mount | |
|---|---|
| Mounting Height | 0.48″ |
| Mounting Depth | 0.57″ |
| Cutout Diameter | 2″ |
| Frame Diameter | 2.275″ |
Crossover: The passive crossovers allow some system flexibility; the tweeter output level and crossover slope are adjustable.
- Tweeter Output Level: three jumper positions; choose -3 dB, 0 dB (flat), or +3 dB
- Crossover Slope: two jumper positions; choose 12 dB/octave or 6 dB/octave
- Wire Connections: inputs and outputs are screw terminals; accept bare wire or spade connectors up to 0.315″ wide (no wire is included with the speakers)
- Crossover Dimensions:
- Width: 5.32″
- Height: 1.625″
- Depth: 3.94″ (plus wire)
