About the Alpine HDZ-65
Alpine Status high-resolution audio system
Alpine designed its Status System components for high-resolution audio playback. Their Status Series digital receiver, amp, speakers, and subs were designed to work together and play your 192kHz/24bit digital music streaming files with high-quality, studio-level purity and sonic fidelity.Ready for high-resolution

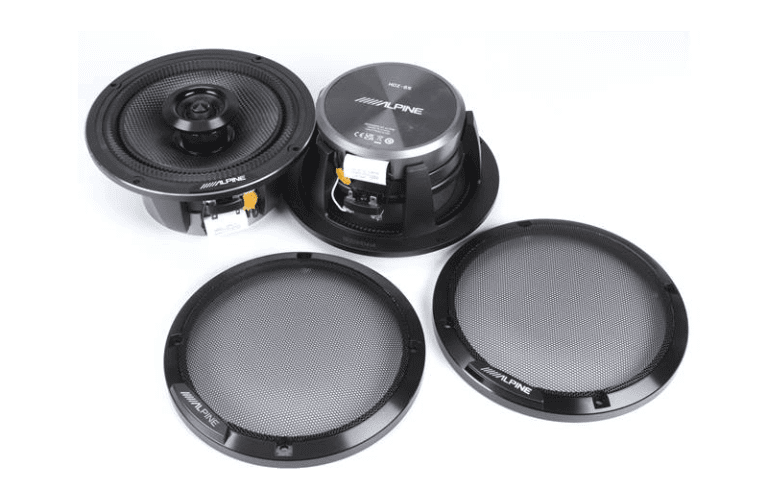

Alpine crafted their HDZ-65 6-1/2″ Status Hi-Res 2-way car speakers for listeners in search of excellent audio quality in the car. Using many of the same design and material elements as their flagship F#1 Status speakers, this speaker optimizes the woofer and tweeter for near-perfect sound from premium sources, like high-resolution audio files.Optimized for Alpine
These Status Series speakers make a great addition to any high-powered system, thanks to power-handling up to 100 watts RMS, but you can unlock their full potential by pairing them with Status System components, which Alpine designed with high-resolution audio in mind. Alpine uses a carbon composite cone for consistency across the speaker’s ultra-wide frequency range, plus a special double gathered-edge surround, which helps minimize distortion and promote accuracy.Prioritized fit
Alpine wants to help more customers enjoy the pleasure of high-resolution audio in their cars, so they’ve designed these speakers to fit in the factory locations in many vehicles.Product highlights:
- 2-way car speakers (pair)
- 6-1/2″ carbon composite woofer with double-gathered edge surround
- 1″ dome tweeter
- handles up to 100 watts RMS (300 watts peak power)
- frequency range: 55-40,000 Hz
- sensitivity: 88 dB
- grilles included
What’s in the box:
- Alpine HDZ-65 owner’s manual
- Two 2-way Speakers
- 2 Grilles
- Eight 1-1/8″ Screws
- 8 Speed clips
- Owner’s manual
- Warranty information
- Important Notice
- On-line product registration information
More details on the Alpine HDZ-65
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Carbon Composite | |
| Woofer Surround | Rubber | |
| Midrange Design | — | |
| Midrange Material | — | |
| Tweeter Design | Cone | |
| Tweeter Material | Carbon Composite | |
| Super Tweeter Design | — | |
| Super Tweeter Material | — | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | Black, Steel mesh, Plastic frame | |
| Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | N/A | |
| Sensitivity at 2.83 volts | 88 | |
| Frequency Response | 55 – 40k Hz | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 300 | |
| Top-mount Depth (Inches) | 2 11/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 9/16 | |
| Mounting Height (Inches) | 0.678 | |
| Frame Width | 6.689 | |
| Frame Length | 6.689 | |
The Alpine HDZ-65 replaces these items:
- Alpine X-S65
Product Research
Features
Size Note: Alpine describes this speaker size as 6½, but because it requires a larger cutout than a standard 6½ speaker, Crutchfield has traditionally referred to this size as 6¾. Please enter your vehicle information to confirm fit.
Cone Material: The same carbon composite cone material is used for the woofer and tweeter, aiding the smooth transition between the drivers.
Phase Plug: The tweeters use an aluminum phase plug in the center of the cone to help produce a smooth, flat off-axis frequency response by preventing the high frequency sound waves from one side of the cone from interfering with sound waves from the other side of the cone.
